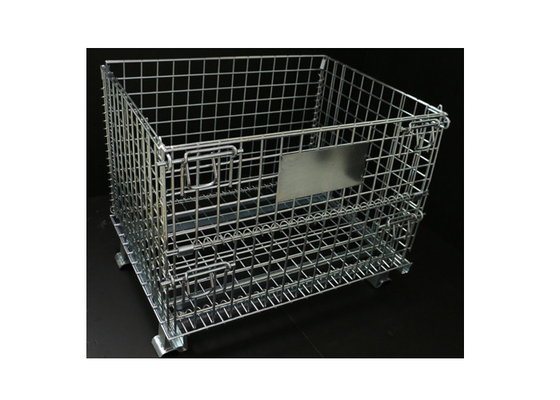

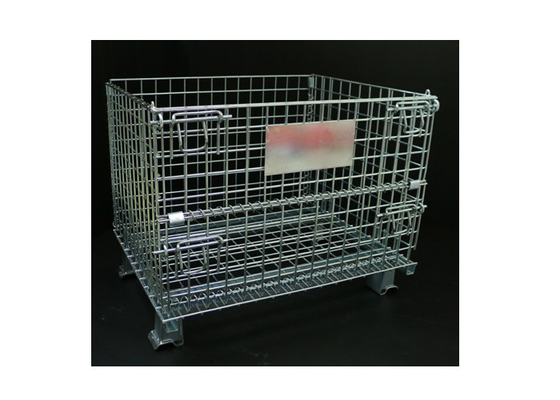

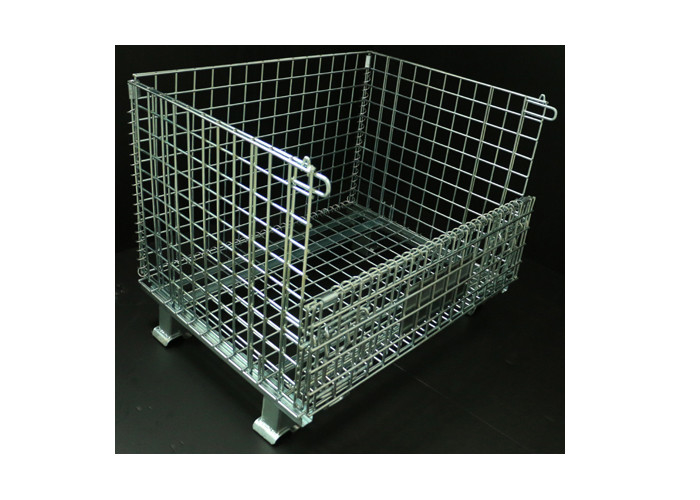

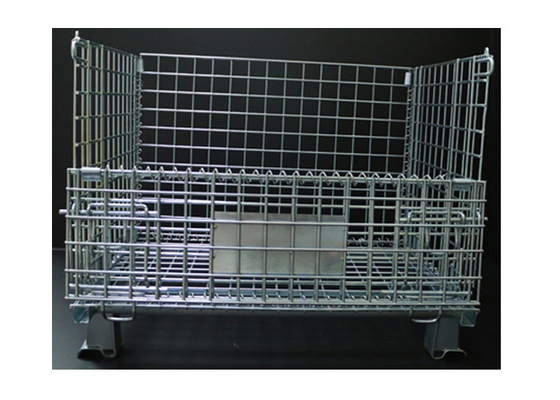

Customized Steel Wire Containers Corrosion Resistant Convenient To Transport
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | Collapsible, Stackable, Half Drop Gate | External Size: | 1200L*1000W*890H Mm |
|---|---|---|---|
| Wire Dia.: | 6.2mm | Mesh Grid: | 50*50mm |
| Loading Capacity: | 2000kg | 20 Ft GP: | 160 Pcs |
| 40 Ft GP: | 369 Pcs | Raw Material: | Steel Q235 |
| U-shaped Slot: | 5*4 | Finish: | Cold Galvanized, Hot Galvanized Is Available |
| High Light: | wire mesh storage containers,industrial metal wire baskets |
||
Metal Components Storage Wire Mesh Container and 2000kg Loading Capacity Baskets
Standard Size Wire Container (Heavy-Duty)
| Item No. | Specification | Wire Dia. | Mesh Gauge | Load Capacity | Weight | Feet Height | Load Qty 20GP | Load Qty 40Gp | Finish | |
| External size(mm) | Internal size(mm) | (mm) | (mm) | (mm) | (kg)±2% | (mm) | (set) | (set) | ||
| HG-C1 | 1200*1000*890 | 1150*950*750 | 5.8 | 50*50 | 1500 | 59 | 100 | 160 | 369 | Galvanized |
| HG-C2 | 5.6 | 50*50 | 1300 | 56.5 | ||||||
| HG-C3 | 5.8 | 50*100 | 1000 | 52 | ||||||
| HG-C4 | 5.6 | 50*100 | 800 | 48 | ||||||
| HG-C5 | 6.3 | 50*50 | 2000 | 66 | ||||||
Features:
1. Foldable:
It’s cost-effective for shipping owning to the foldable design
2. Stackable:
Max stacking layer is 4 and it helps to save 4 times space for your warehouse.
3. Durable:
Longevity is about 8 years at normal temperature indoor using.
4. Multifunctional:
Auto Parts, Sanitary Hose, Used Shoes and Clothing, Vegetable, Fruit, All Components etc.
Optional Accessories
1. Corrugated plastic sheet: 4MM, 5MM, 6MM, 8MM, 10MM 5. Hingled Lids
2. Caster: Nylon, PP 6. Full Trop Gate
3. Forks Stirrups 7. Dividers
4. Forks Pockets 8. Traction
Product Details
Door Bolt Wire Guage
Application Cases
Quality Control
1. All our raw material is international standard Steel Q235.
2. There are over 200 experienced workers in workshop
3. Every worker passed our factory imployee criteria test.
4. Our quality control department checked the quality step by step before shipping.
