Size: | 800L*600W*640H Mm | Wire Diam.: | 6.0mm |
---|---|---|---|
Mesh Gauge: | 50*50mm | Loading Capacity: | 800kg |
Material: | Steel Q235 | Feature: | Collapsible, Stackable, Half Drop Gate |
Surface Treatment: | Electro Galvanized, Hot Dip Galvanized, Powder Coating | ||
High Light: | metal mesh storage bin,wire mesh storage crates |

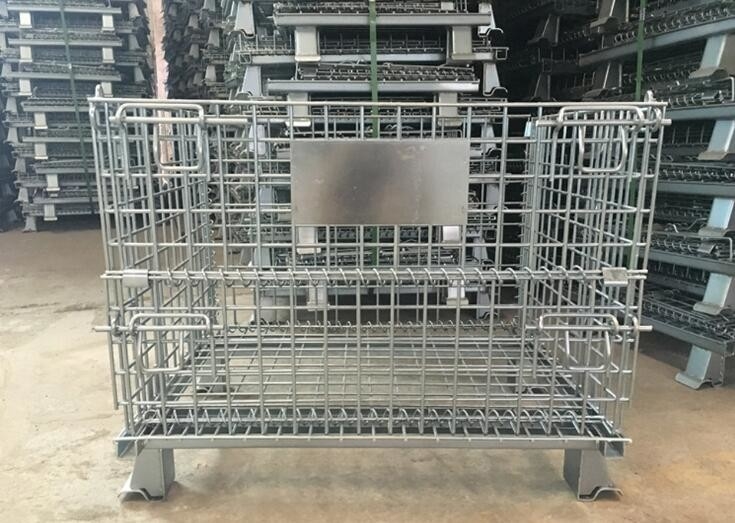

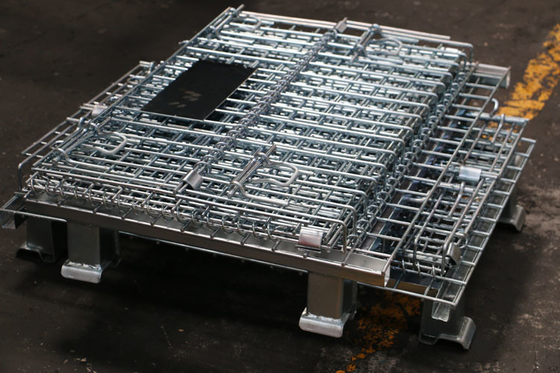

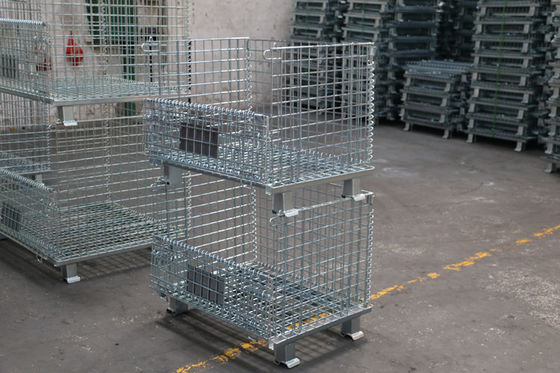

800mm Small Size Industrial Folding and Stacking Light-Duty Wire Mesh Container
Standard Types of Wire Container (Light-Duty)
Item No. | Specification | Wire Dia. | Mesh Gauge | Load Capacity | Weight | Feet Height | Load Qty 20GP | Load Qty 40Gp | Finish | |
External size(mm) | Internal size(mm) | (mm) | (mm) | (mm) | (kg)±2% | (mm) | (set) | (set) | ||
HG-A1 | 800*600*640 | 750*550*500 | 5.8 | 50*50 | 800 | 28 | 100 | 360 | 760 | Galvalized |
HG-A2 | 5.6 | 50*50 | 700 | 26 | ||||||
HG-A3 | 5.3 | 50*50 | 600 | 23 | ||||||
HG-A4 | 4.8 | 50*50 | 400 | 21 | ||||||
HG-A5 | 5.8 | 50*100 | 600 | 25 | ||||||
HG-A6 | 6.3 | 50*50 | 1000 | 33 |
ADDITIONAL WIRE MESH CONTAINER ACCESSORIES
* Full drop gate
* Dividers
* Hinged lid
* Stacking guides
* Fork pockets
* Fork stirrups
* 4-way runners
* Castors
* PP sheet inside
