Product Details:
Payment & Shipping Terms:
|
Size: | 1200L*1000W*890H Mm | Wire Dia: | 6.0mm |
---|---|---|---|
Mesh Size: | 50*50mm | Loading Capacity: | 1500kg |
Material: | Steel Q235 | Feature: | Collapsible, Stackable, Half Drop Gate |
Finish: | Electro Galvanized, Hot Dip Galvanized, Powder Coating | ||
High Light: | industrial metal wire baskets,wire metal storage bins |

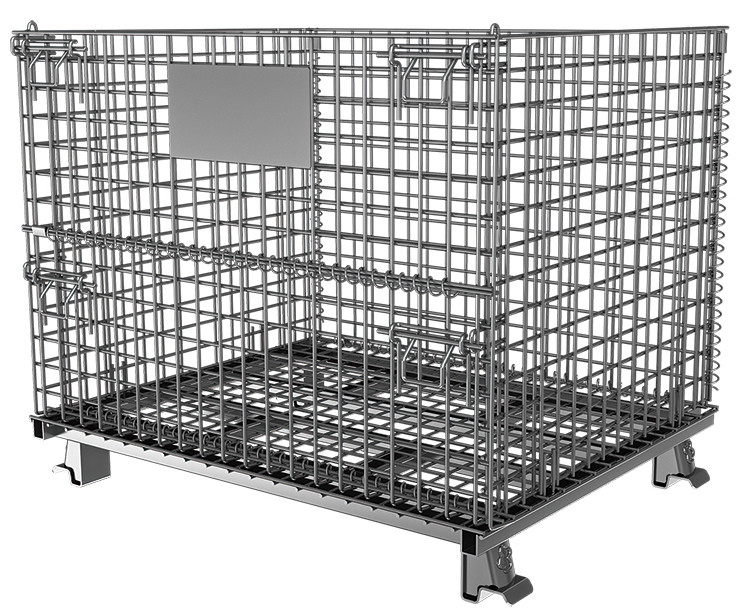

Heavy-Duty Collapsible Wire Mesh Container with Half Drop Gate
Standard Size Wire Container (Heavy-Duty)
Item No. | Specification | Wire Dia. | Mesh Gauge | Load Capacity | Weight | Feet Height | Load Qty 20GP | Load Qty 40Gp | Finish | |
External size(mm) | Internal size(mm) | (mm) | (mm) | (mm) | (kg)±2% | (mm) | (set) | (set) | ||
HG-C1 | 1200*1000*890 | 1150*950*750 | 5.8 | 50*50 | 1500 | 59 | 100 | 160 | 369 | Galvalized |
HG-C2 | 5.6 | 50*50 | 1300 | 56.5 | ||||||
HG-C3 | 5.8 | 50*100 | 1000 | 52 | ||||||
HG-C4 | 5.6 | 50*100 | 800 | 48 | ||||||
HG-C5 | 6.3 | 50*50 | 2000 | 66 |
Selling Points
Collapsible: It’s cost-effective for shipping owning to the foldable design
Stackable: Max stacking layer is 4 and it helps to save 4 times space for your warehouse.
Recycling: Longevity is about 8 years at normal temperature indoor using.
Multipurpose: Auto Parts, Sanitary Hose, Used Shoes and Clothing, Vegetable, Fruit, All Components etc.
Optional Accessory
1. Corrugated plastic sheet: 4MM, 5MM, 6MM, 8MM, 10MM
2. Wheels: Nylon, PP,
3. Forks Stirrups
4. Forks Pockets
5. Hingled Lids
6. Full Trop Gate
7. Dividers

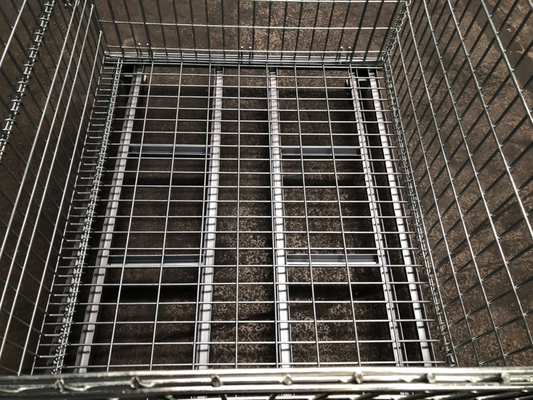

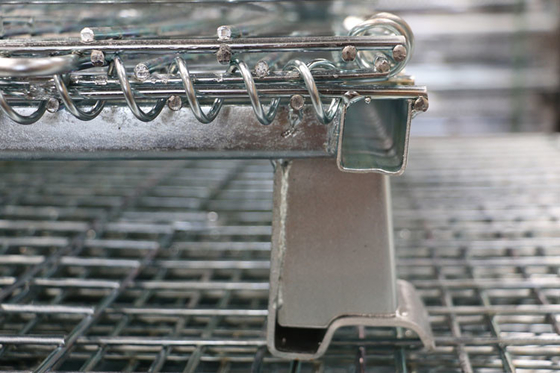

Product Details
Drawing

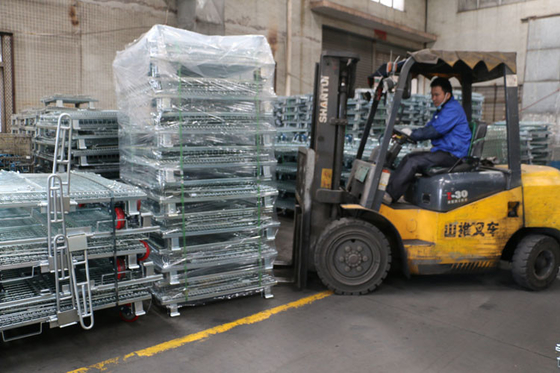

Application Cases
Quality and Control
1. All our raw material is international standard Steel Q235.
2. There are over 200 experienced workers in workshop
3. Every worker passed our factory imployee criteria test.
4. Our quality control department checked the quality step by step before shipping.
