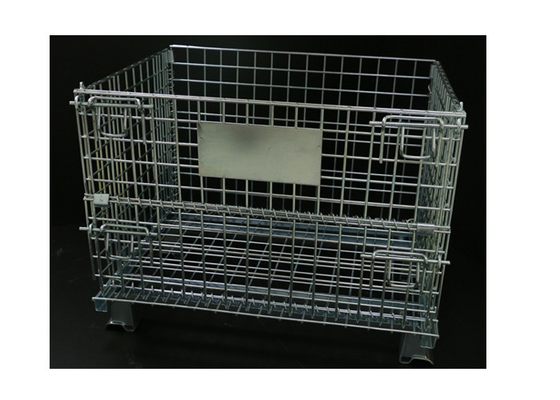

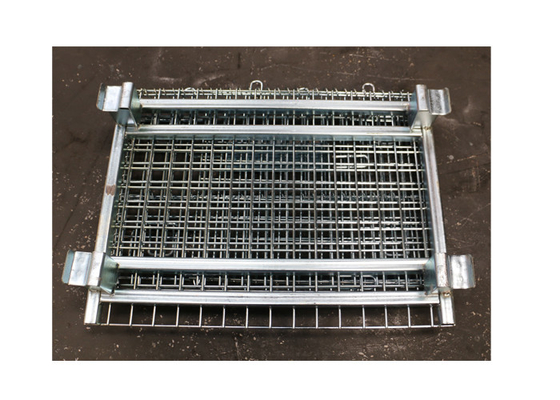

Heavy Duty Rigid Wire Mesh Container 800KG Loading Capacity Foldable Type

Used collapsible Steel Wire Conatainer and Mesh Box , Wire Cage Metal Bin Storage

Specification

Small Steel Wire Container
External Size(MM)	L8100*W600*H640
Internal Size(MM)	L750*W550*H500
Wire Dia(MM)	5.3
Wire Guage(MM)	50*50
Technology	Gold Galvanized
Max Stacking	4 Units
Loading Capacity	600kg
Feet Height	100MM



Optional Loading Capacity

In order to meet difference customer's loading requirement, there are other 5 types wire diameter alternaltive.




Product Details

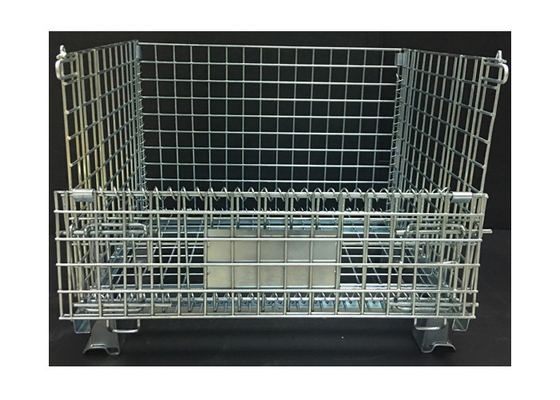

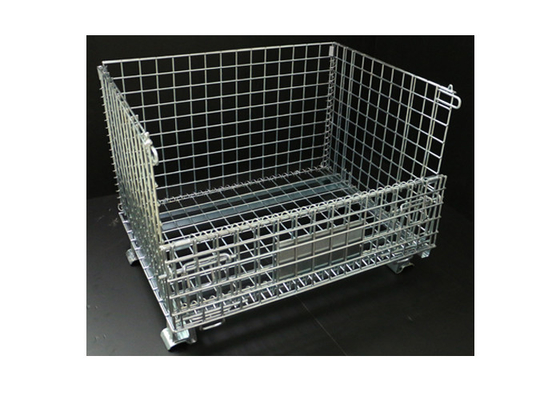

Drop Gate Advantage
1. Collapsible wire baskets come standard with a half drop gate on the long side.The half drop
   gate allows for easy ergonomic access to stored product.The drop gate also serves a purpose.
   It allows these stacking wire baskets to be collapsible.
2. Drop gates can be dropped in half drop or full drop position on industrial wire mesh baskets.
   Drop gates are secured by a safety latch that keeps gates closed and secured while basket is
   loaded and while basket is in stacked position. It is important to remember that drop gates on
   stacking wire baskets must always be closed and locked while baskets are in the stacked position.
3. Drop gates are typically configured on the long side of industrial wire mesh baskets – that’s how they
   are stocked. If you want the drop gate on the short side it can be done but will require an estimated
   9-10 week lead time.

Alternative Accessory
 A. PP Sheet: blue, white, black, red, Green etc. Thickness: 4MM, 5MM, 6MM, 8MM, 10MM.
 B. Caster: PP,Nylon, Rubber Wheels. Universal and brake fuctional wheels is available.
 C. Divider:  Horizontal and vertical dividers
 D. Lid: The Wire mesh lid will be fasten by the spring

Technology
1. Preparing raw material
2. Cutting the steel
3. Welding the wire mesh
4. To Assemble the wie mesh container


Application Cases
Our steel wire container is widely used in Sanitary hose, Motor parts, steel components, vegetable, fruit etc.
Honda, JD, Gree are some of our existing clients.


Customized Service
Customized product is available for our clients. If you have want to design a special size for your own
product,pls forwardyour requirements for us. We have a strong team to support you.

Our Factory
Our Factory is located in Huizhou of Guangdong province which is close to the Shenzhen port. We own over 220
employees and the factory is occupying 1000 square meter. The capacity of our factory production is reaching to
45 tons per day. that's total can meet your bulk order.


Exhibitions

Our company will participate the logistic exhibition in Korea, Japan, Thailand, USA etc.


Package and Shippment

Our unit wire mesh container is wreped with the steel or palstic belt. Strench film is also available for the
special requirment.
