Product Details:
Payment & Shipping Terms:
|
Features: | Collapsible, Stackable, Half Drop Gate | External Size: | 1200L*1000W*890H Mm |
---|---|---|---|
Wire Dia.: | 5.6mm | Mesh Grid: | 50*100mm |
Loading Capacity: | 800kg | 20 Ft GP: | 160pcs |
40 Ft GP: | 320pcs | Raw Material: | Steel Q235 |
U-shaped Slot: | 5*4 | Surface Treatment: | Cold Galvanized, Hot Galvanized Is Available |
High Light: | wire mesh storage containers,industrial metal wire baskets |
Half Drop Door
Collapsible wire baskets come standard with a half drop gate on the long side. The half drop gate
allows for easy ergonomic access to stored product. The drop gate also serves a purpose. It allows
these stacking wire baskets to becollapsible.
Drop gates can be dropped in half drop or full drop position on industrial wire mesh baskets. Drop
gates are secured by a safety latch that keeps gates closed and secured while basket is loaded and
while basket is in stacked position.

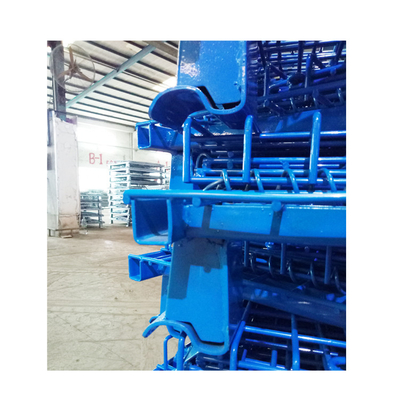

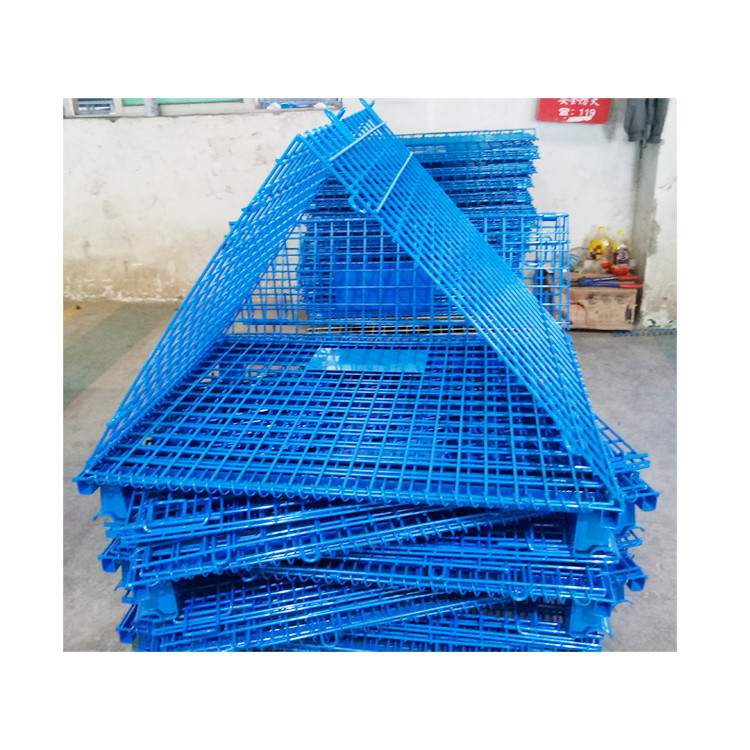

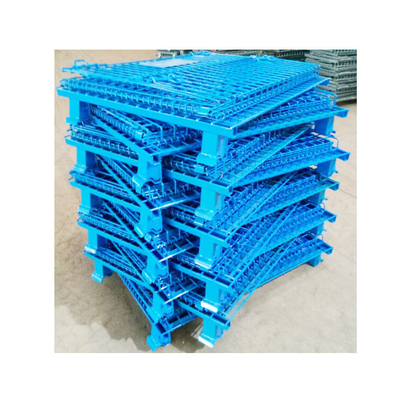

Customized Blue Color Powder Coated Wire Mesh Container with Half Drop Door
Standard Size Wire Container (Heavy-Duty)
Item No. | Specification | Wire Dia. | Mesh Gauge | Load Capacity | Weight | Feet Height | Load Qty 20GP | Load Qty 40Gp | Finish | |
External size(mm) | Internal size(mm) | (mm) | (mm) | (mm) | (kg)±2% | (mm) | (set) | (set) | ||
HG-C1 | 1200*1000*890 | 1150*950*750 | 5.8 | 50*50 | 1500 | 59 | 100 | 160 | 320 | Galvanized |
HG-C2 | 5.6 | 50*50 | 1300 | 56.5 | ||||||
HG-C3 | 5.8 | 50*100 | 1000 | 52 | ||||||
HG-C4 | 5.6 | 50*100 | 800 | 48 | ||||||
HG-C5 | 6.3 | 50*50 | 2000 | 66 |
Advantages | |
1. Foldable | It’s cost-effective for shipping owning to the foldable design |
2. Stackable | Max stacking layer is 4 and it helps to save 4 times space for your warehouse. |
3. Durable | Longevity is about 8 years at normal temperature indoor using. |
4. Multifunctional | Auto Parts, Sanitary Hose, Used Shoes and Clothing, Vegetable, Fruit, All Components etc. |
Optional Accessories
1. Corrugated plastic sheet: 4MM, 5MM, 6MM, 8MM, 10MM
2. Caster: Nylon, PP
3. Forks Stirrups
4. Forks Pockets
5. Hingled Lids
6. Full Trop Gate
7. Dividers
8. Traction
Optional Color
Yellow, Pink, Green, White, Purple etc.
Quality Control | 1. All our raw material is international standard Steel Q235. |
2. There are over 200 experienced workers in workshop | |
3. Every worker passed our factory imployee criteria test. | |
4. Our quality control department checked the quality step by step before shipping. |
