Home ProductsSteel Wire Containers

Stacking Wire Mesh Pallet Containers Stainless Steel Collapsible Wire Basket

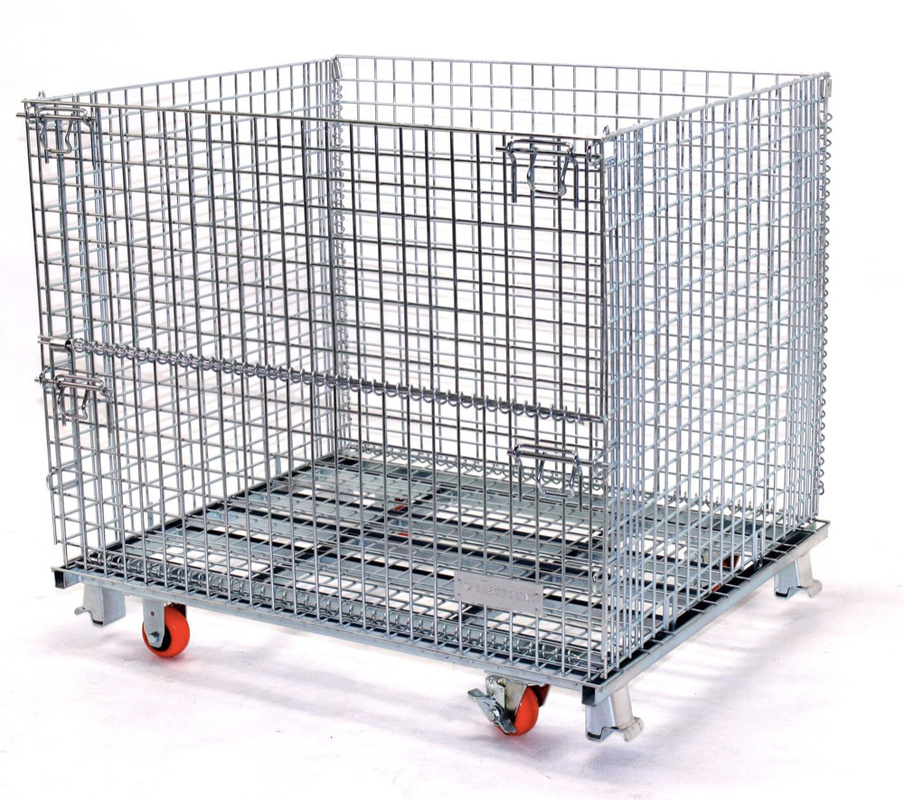

Stacking Wire Mesh Pallet Containers Stainless Steel Collapsible Wire Basket

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Stacking Wire Mesh Pallet Containers Stainless Steel Collapsible Wire Basket Get Best Price

Product Details:
Place of Origin: Guangdong Of China
Brand Name: Huge
Model Number: HG-C1
Payment & Shipping Terms:
Minimum Order Quantity: 30 pcs
Packaging Details: Wrapped by plastic or steel belt. 20ft container: 160 pcs 40ft container: 320 pcs
Delivery Time: 12-25 Days
Payment Terms: T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 45 tons per Day
Detailed Product Description
Size: 1200L*1000W*890H Mm Wire Dia: 6.0mm
Mesh Size: 50*50mm Loading Capacity: 1500kg
Material: Steel Q235 Advantages: Collapsible, Stackable, Half Drop Gate
Finish: Electro Galvanized, U-shaped Slot: L6*W4
Exhibition: Korean Logistic Exhibition, Japan, Thailand Alternative Finish: Hot Dip Galvanized, Power Coated
High Light:

wire mesh storage containers

,

industrial metal wire baskets

1200mm heave duty folding and stacking wire mesh cage with wheels and draw bar for storage

Standard Size Wire Container (Heavy-Duty)



Item No. Specification Wire Dia. Mesh Gauge Load Capacity Weight Feet Height Load Qty 20GP Load Qty 40Gp Finish
  External size(mm) Internal size(mm) (mm) (mm) (mm) (kg)±2% (mm) (set) (set)
HG-C1 1200*1000*890 1150*950*750 5.8 50*50 1500 59 100 160 369 Galvalized
HG-C2 5.6 50*50 1300 56.5
HG-C3 5.8 50*100 1000 52
HG-C4 5.6 50*100 800 48
HG-C5 6.3 50*50 2000 66


Advantages:

1. Foldable:

   It’s cost-effective for shipping owning to the foldable design
2. Stackable:

   Max stacking layer is 4 and it helps to save 4 times space for your warehouse.
3. Durable:

   Longevity is about 8 years at normal temperature indoor using.
4. Multifunctional:

   Auto Parts, Sanitary Hose, Used Shoes and Clothing, Vegetable, Fruit, All Components etc.


 Available Accessories

1. Corrugated plastic sheet: 4MM, 5MM, 6MM, 8MM, 10MM
2. Caster: Nylon, PP
3. Forks Stirrups
4. Forks Pockets
5. Hingled Lids
6. Full Trop Gate
7. Dividers

8. Traction

Product Details

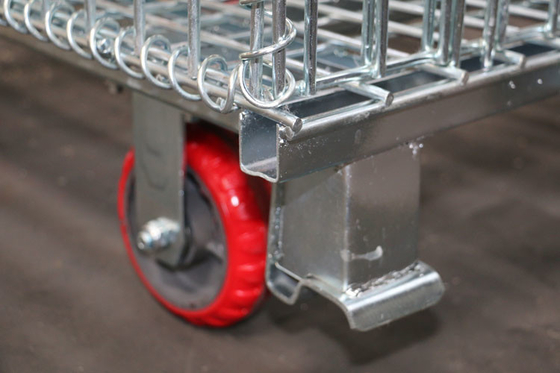

                               Full-length Welding Feet                                                                                 Spring


    Stacking Wire Mesh Pallet Containers Stainless Steel Collapsible Wire Basket              Stacking Wire Mesh Pallet Containers Stainless Steel Collapsible Wire Basket
      Full-length welding technology make the feet firmer,                 Spring make the wire container folded, simplified the design.

      and makes sure the wire container loading capacity.

Application Cases

Stacking Wire Mesh Pallet Containers Stainless Steel Collapsible Wire Basket

Stacking Wire Mesh Pallet Containers Stainless Steel Collapsible Wire Basket

Stacking Wire Mesh Pallet Containers Stainless Steel Collapsible Wire Basket


Quality Control


1. All our raw material is international standard Steel Q235.

2. There are over 200 experienced workers in workshop

3. Every worker passed our factory imployee criteria test.

4. Our quality control department checked the quality step by step before shipping.



Shipment



Stacking Wire Mesh Pallet Containers Stainless Steel Collapsible Wire Basket

Stacking Wire Mesh Pallet Containers Stainless Steel Collapsible Wire Basket
