Galvanized Steel Industrial Wire Bins Stackable Space Saving Multifunctional
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | Collapsible, Stackable, Half Drop Gate | External Size: | 1200L*1000W*890H Mm |
|---|---|---|---|
| Wire Dia.: | 5.6mm | Mesh Grid: | 50*100mm |
| Loading Capacity: | 800kg | 20 Ft GP: | 90pcs |
| 40 Ft GP: | 240pcs | Raw Material: | Steel Q235 |
| U-shaped Slot: | 5*4 | Surface Treatment: | Cold Galvanized, Hot Galvanized Is Available |
| Wheels: | 4 Nylon Wheel | ||
| High Light: | wire mesh storage containers,industrial metal wire baskets |
||

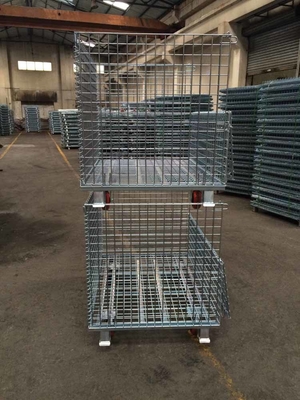

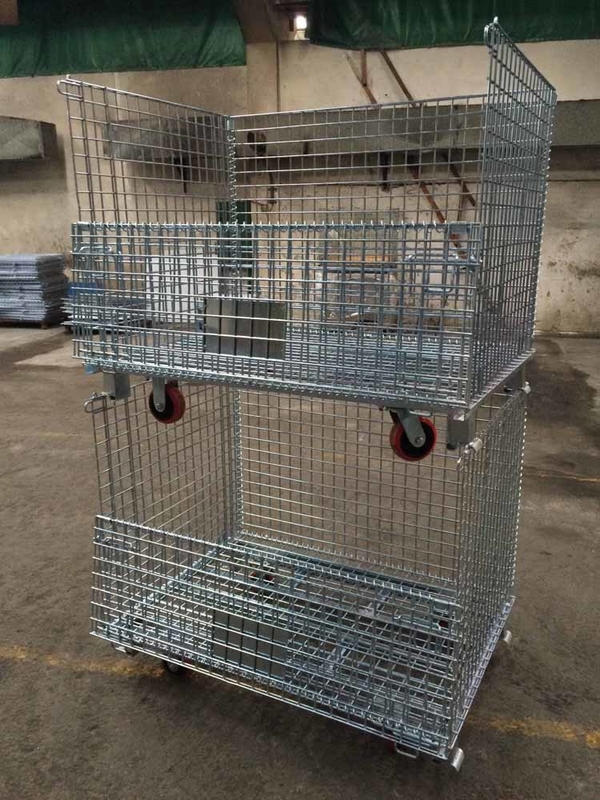

Folding and stacking galvanized steel cage pallet with wheels for auto parts
Standard Size Wire Container (Heavy-Duty)
| Item No. | Specification | Wire Dia. | Mesh Gauge | Load Capacity | Weight | Feet Height | Load Qty 20GP | Load Qty 40Gp | Finish | |
| External size(mm) | Internal size(mm) | (mm) | (mm) | (mm) | (kg)±2% | (mm) | (set) | (set) | ||
| HG-C1 | 1200*1000*890 | 1150*950*750 | 5.8 | 50*50 | 1500 | 59 | 100 | 90 | 240 | Galvanized |
| HG-C2 | 5.6 | 50*50 | 1300 | 56.5 | ||||||
| HG-C3 | 5.8 | 50*100 | 1000 | 52 | ||||||
| HG-C4 | 5.6 | 50*100 | 800 | 48 | ||||||
| HG-C5 | 6.3 | 50*50 | 2000 | 66 | ||||||
| Advantages | |
| 1.Foldable | It’s cost-effective for shipping owning to the foldable design |
| 2.Stackable | Max stacking layer is 4 and it helps to save 4 times space for your warehouse. |
| 3.Durable | Longevity is about 8 years at normal temperature indoor using. |
| 4.Multifunctional | Auto Parts, Sanitary Hose, Used Shoes and Clothing, Vegetable, Fruit, All Components etc. |

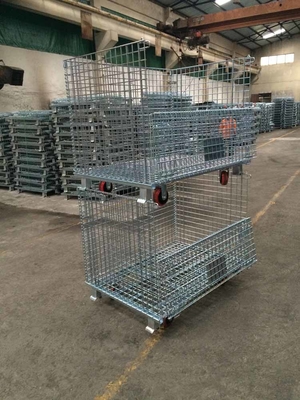

Half Drop Door
Collapsible wire baskets come standard with a half drop gate on the long side. The half drop gate
allows for easy ergonomic access to stored product. The drop gate also serves a purpose. It allows
these stacking wire baskets to becollapsible.
Drop gates can be dropped in half drop or full drop position on industrial wire mesh baskets. Drop
gates are secured by a safety latch that keeps gates closed and secured while basket is loaded and
while basket is in stacked position.
Optional Accessories
1. Corrugated plastic sheet: 4MM, 5MM, 6MM, 8MM, 10MM 5. Hingled Lids
2. Caster: Nylon, PP 6. Full Trop Gate
3. Forks Stirrups 7. Dividers
4. Forks Pockets 8. Traction
| Quality Control | 1. All our raw material is international standard Steel Q235. |
| 2. There are over 200 experienced workers in workshop | |
| 3. Every worker passed our factory imployee criteria test. | |
| 4. Our quality control department checked the quality step by step before shipping. |
