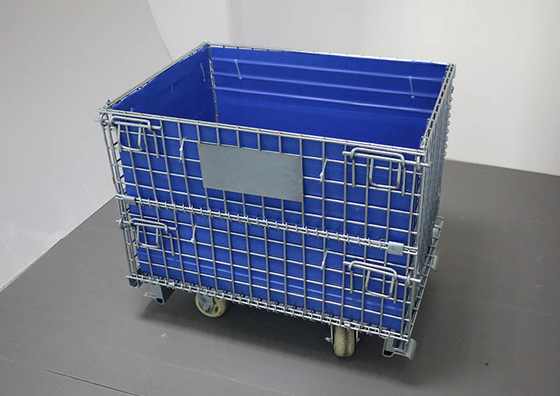

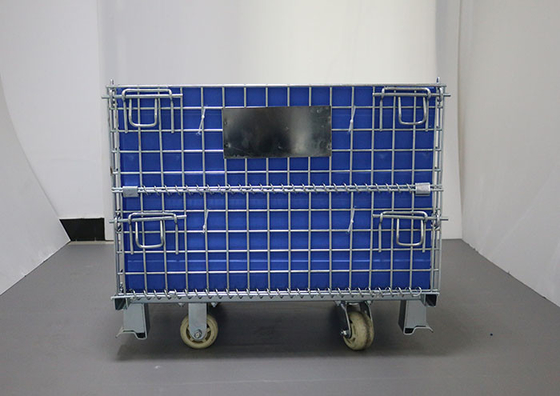

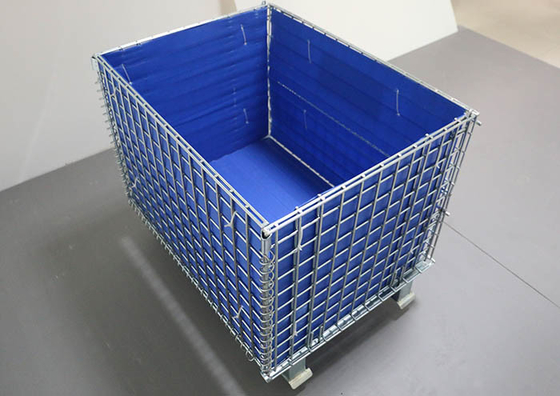

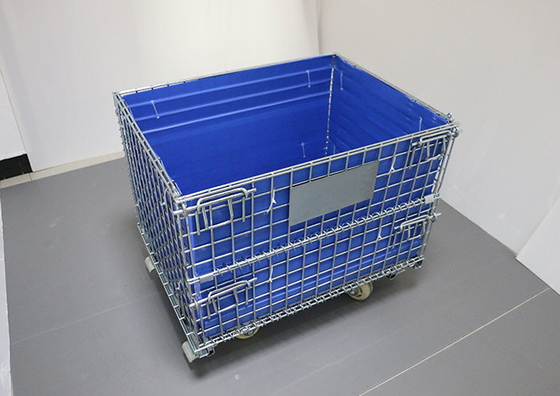

Cold Galvanized Foldable Movable Wire Mesh Box For In - Line Assembly Work
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size: | 1000L*800W*840H Mm | Wire Dia.: | 5.3mm |
|---|---|---|---|
| Mesh Gauge: | 50*50mm | Loading Capacity: | 800kg |
| Material: | Steel Q235 | Feature: | Collapsible, Stackable, Half Drop Gate |
| Surface Finish: | Electro Galvanized, Hot Dip Galvanized, Powder Coating | Oem Service: | Acceptable |
| Finish: | Galvalized | ||
| High Light: | folding wire mesh container,wire folding bulk containers |
||
Cold galvanized foldable movable wire mesh box with hollow board
Standard Types of Wire Container (Medium-Duty)
| Item No. |
External size (mm) |
Internal size (mm) |
Wire Dia.(mm) |
Mesh Gauge (mm) |
Load Capacity (mm) |
Weight (kg)±2% |
Feet Height (mm) |
20GP (set) |
40Gp (set) |
| HG-B1 | 1000*800*840 | 950*750*700 | 5.8 | 50*50 | 1200 | 44 | 100 | 240 | 550 |
| HG-B2 | 5.6 | 50*50 | 1000 | 42 | |||||
| HG-B3 | 5.3 | 50*50 | 800 | 36 | |||||
| HG-B4 | 4.8 | 50*50 | 600 | 31 | |||||
| HG-B5 | 5.8 | 50*100 | 1000 | 39 | |||||
| HG-B6 | 6.3 | 50*50 | 1500 | 51 |
Features
* Hard working, returnable wire containers deliver high visibility savings.
* Handle, transport and store bulk parts and material the efficient way.
* Perfect container for in-line assembly work or work-in-process operations.
* Fully collapsible and stackable 4 high.
Product Details
ADDITIONAL WIRE MESH CONTAINER ACCESSORIES
* Full drop gate
* Dividers
* Hinged lid
* Stacking guides
* Fork pockets
* Fork stirrups
* 4-way runners
* Castors
* PP sheet inside

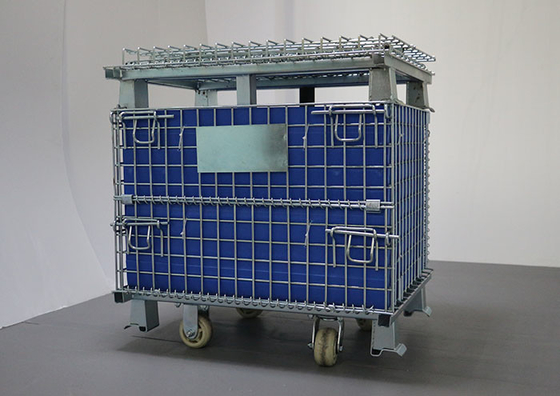

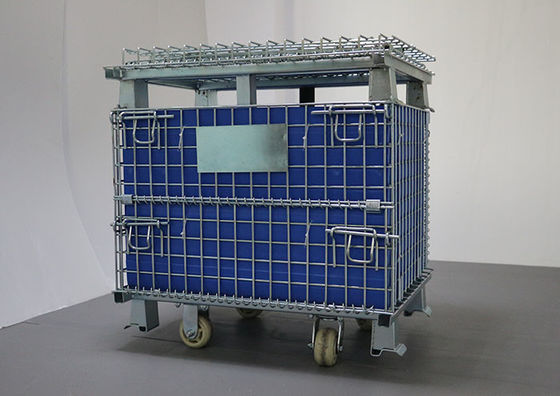

Stacking Effect
Application
