Product Details:
Payment & Shipping Terms:
|
Features: | Collapsible, Stackable, Half Drop Gate | External Size: | 1200L*1000W*890H Mm |
---|---|---|---|
Wire Dia.: | 5.8mm | Mesh Grid: | 50*100mm |
Loading Capacity: | 1000kg | 20 Ft GP: | 160 Pcs |
40 Ft GP: | 369 Pcs | Raw Material: | Steel Q235 |
U-shaped Slot: | 5*4 | Surface Treatment: | Cold Galvanized, Hot Galvanized Is Available |
High Light: | industrial metal wire baskets,wire metal storage bins |

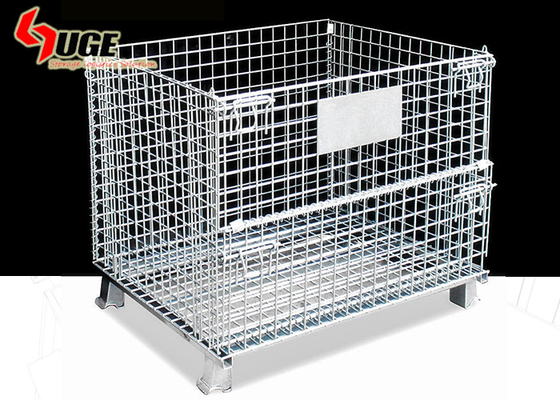

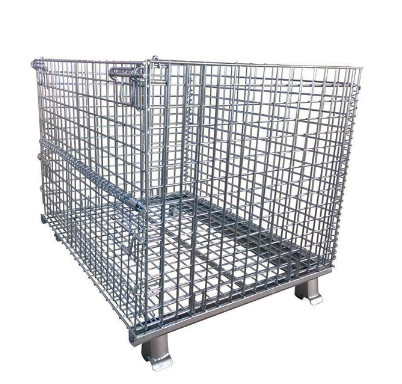

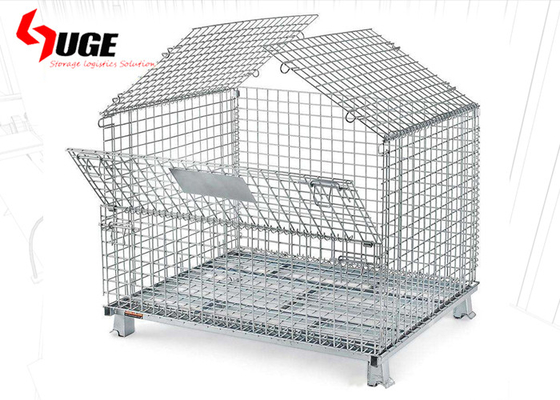

Heavy-Duty Collapsible Wire Mesh Container with Half Drop Gate
5.8mm diameter metal mesh storage cage is convenient for factory use, which can be used with forklift trucks
Standard Size Wire Container (Heavy-Duty)
Item No. | Specification | Wire Dia. | Mesh Gauge | Load Capacity | Weight | Feet Height | Load Qty 20GP | Load Qty 40Gp | Finish | |
External size(mm) | Internal size(mm) | (mm) | (mm) | (mm) | (kg)±2% | (mm) | (set) | (set) | ||
HG-C1 | 1200*1000*890 | 1150*950*750 | 5.8 | 50*50 | 1500 | 59 | 100 | 160 | 369 | Galvalized |
HG-C2 | 5.6 | 50*50 | 1300 | 56.5 | ||||||
HG-C3 | 5.8 | 50*100 | 1000 | 52 | ||||||
HG-C4 | 5.6 | 50*100 | 800 | 48 | ||||||
HG-C5 | 6.3 | 50*50 | 2000 | 66 |
Selling Points
Collapsible: It’s cost-effective for shipping owning to the foldable design
Stackable: Max stacking layer is 4 and it helps to save 4 times space for your warehouse.
Recycling: Longevity is about 8 years at normal temperature indoor using.
Multipurpose: Auto Parts, Sanitary Hose, Used Shoes and Clothing, Vegetable, Fruit, All Components etc.
Optional Accessory
1. Corrugated plastic sheet: 4MM, 5MM, 6MM, 8MM, 10MM

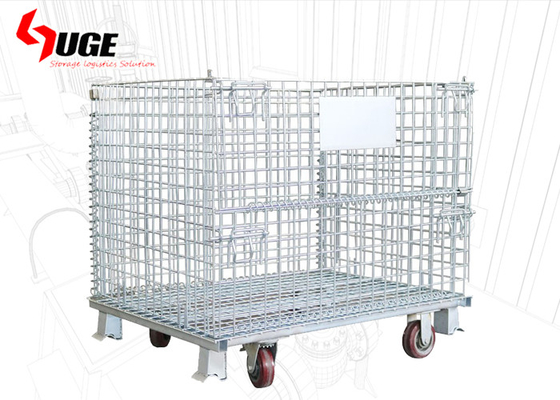

2. Wheels: Nylon, PP,
3. Forks Stirrups
4. Forks Pockets
5. Hingled Lids
6. Full Trop Gate
7. Dividers
Quality Control
1. All our raw material is international standard Steel Q235.
2. There are over 200 experienced workers in workshop
3. Every worker passed our factory imployee criteria test.
4. Our quality control department checked the quality step by step before shipping.
Product Details
Drawing

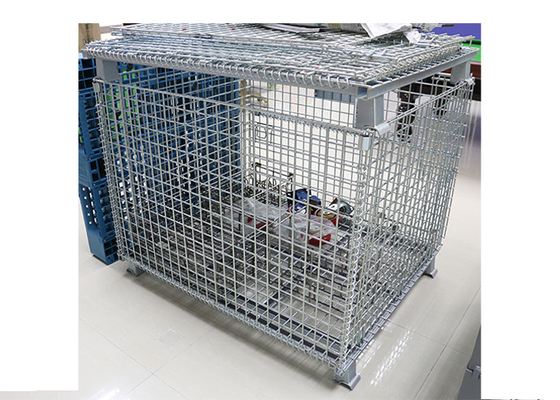

Application Cases
Quality and Control
1. All our raw material is international standard Steel Q235.
2. There are over 200 experienced workers in workshop
3. Every worker passed our factory imployee criteria test.
4. Our quality control department checked the quality step by step before shipping.
Packaging
* Plastic banding & Stretch film wrapped
* easy loading and unloading with standard forklift truck
* as your requirement
