Product Details:
Payment & Shipping Terms:
|
Features: | Collapsible, Stackable, Half Drop Gate | External Size: | 1200L*1000W*890H Mm |
---|---|---|---|
Wire Dia.: | 5.6mm | Mesh Grid: | 50*100mm |
Loading Capacity: | 800kg | 20 Ft GP: | 90pcs |
40 Ft GP: | 240pcs | Raw Material: | Steel Q235 |
U-shaped Slot: | 5*4 | Surface Treatment: | Cold Galvanized, Hot Galvanized Is Available |
High Light: | industrial metal wire baskets,wire metal storage bins |

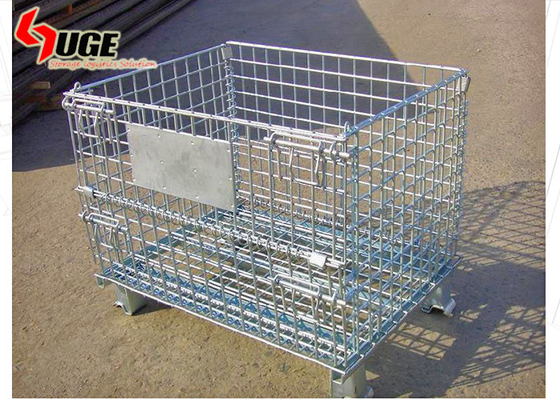

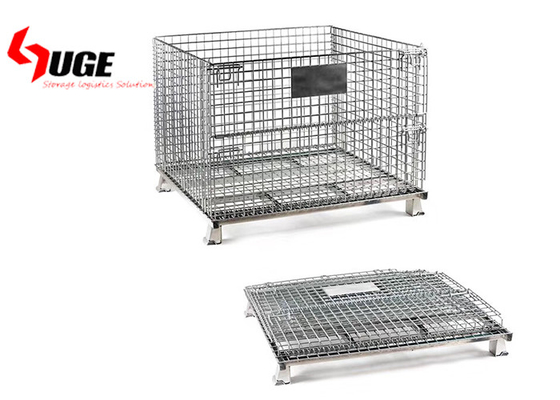

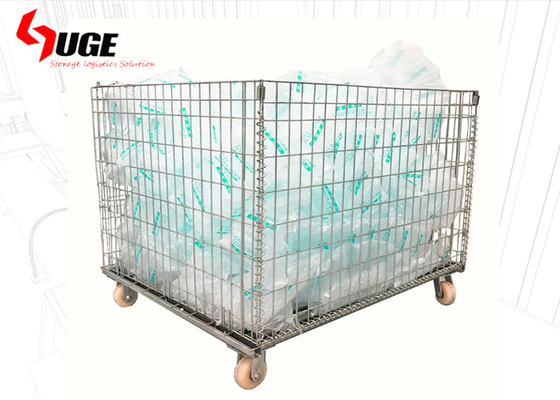

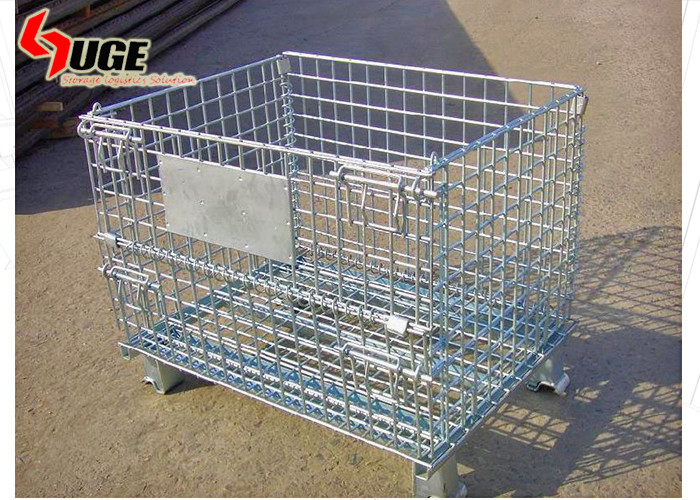

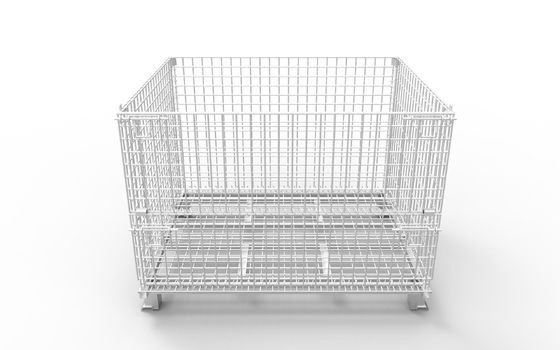

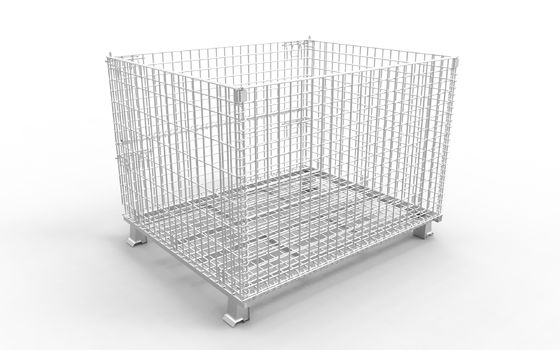

Folding and stacking galvanized steel cage pallet with wheels for auto parts
The metal mesh storage cage with diameter of 5.6mm is used in the warehouse, which can be stacked to save space
Wholesale warehouse equipment galvanized metal container cage bins storage
Standard Size Wire Container (Heavy-Duty)
Item No. | Specification | Wire Dia. | Mesh Gauge | Load Capacity | Weight | Feet Height | Load Qty 20GP | Load Qty 40Gp | Finish | |
External size(mm) | Internal size(mm) | (mm) | (mm) | (mm) | (kg)±2% | (mm) | (set) | (set) | ||
HG-C1 | 1200*1000*890 | 1150*950*750 | 5.8 | 50*50 | 1500 | 59 | 100 | 90 | 240 | Galvanized |
HG-C2 | 5.6 | 50*50 | 1300 | 56.5 | ||||||
HG-C3 | 5.8 | 50*100 | 1000 | 52 | ||||||
HG-C4 | 5.6 | 50*100 | 800 | 48 | ||||||
HG-C5 | 6.3 | 50*50 | 2000 | 66 |
Advantages | |
1. Foldable | It’s cost-effective for shipping owning to the foldable design |
2. Stackable | Max stacking layer is 4 and it helps to save 4 times space for your warehouse. |
3. Durable | Longevity is about 8 years at normal temperature indoor using. |
4. Multifunctional | Auto Parts, Sanitary Hose, Used Shoes and Clothing, Vegetable, Fruit, All Components etc. |
Half Drop Door
Collapsible wire baskets come standard with a half drop gate on the long side. The half drop gate
allows for easy ergonomic access to stored product. The drop gate also serves a purpose. It allows
these stacking wire baskets to becollapsible.
Drop gates can be dropped in half drop or full drop position on industrial wire mesh baskets. Drop
gates are secured by a safety latch that keeps gates closed and secured while basket is loaded and
while basket is in stacked position.
Optional Accessories
1. Corrugated plastic sheet: 4MM, 5MM, 6MM, 8MM, 10MM 5. Hingled Lids
2. Caster: Nylon, PP 6. Full Trop Gate
3. Forks Stirrups 7. Dividers
4. Forks Pockets 8. Traction
Quality Control | 1. All our raw material is international standard Steel Q235. |
2. There are over 200 experienced workers in workshop | |
3. Every worker passed our factory imployee criteria test. | |
4. Our quality control department checked the quality step by step before shipping. |
Packaging
* Plastic banding & Stretch film wrapped
* easy loading and unloading with standard forklift truck
* as your requirement
Guangzhou Huge Logistic Equipment Co., Limited
* Guangzhou Huge Logistic Equipment Co., Limited is specialized in manufacturing Wire Mesh Container, Roll Trolley, Steel Cage Pallets, Removable Stacking, Steel Pallets, Blister etc.
* Huge International Marketing department is located in Guangzhou where is international trading metropolitan and the holding city of Canton Fair.
* Our factory lies in Huizhou where is close to the Shenzhen port, covering an area of 20,000sqm, with our own R&D department.
* We combine the design, manufacturing, marketing and always provide the satisfied service for our clients.
* We also have experiences in manufacturing customized product. Advanced equiments are applied to manufacture all kind of products.
* Main markets are North America, Eastern Asia, Southeast Asia and Australia. We dedicate to serve for our customer all around the world.
